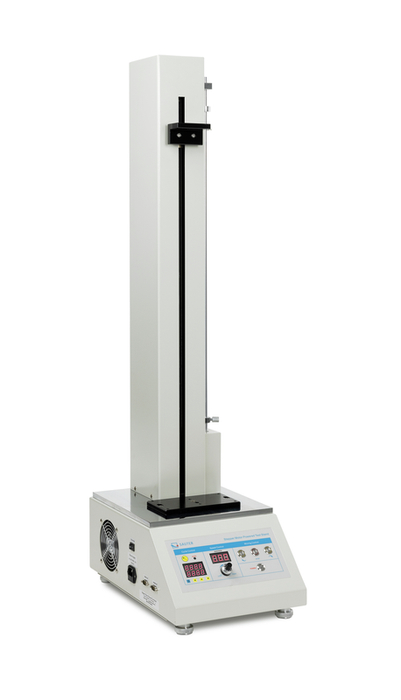

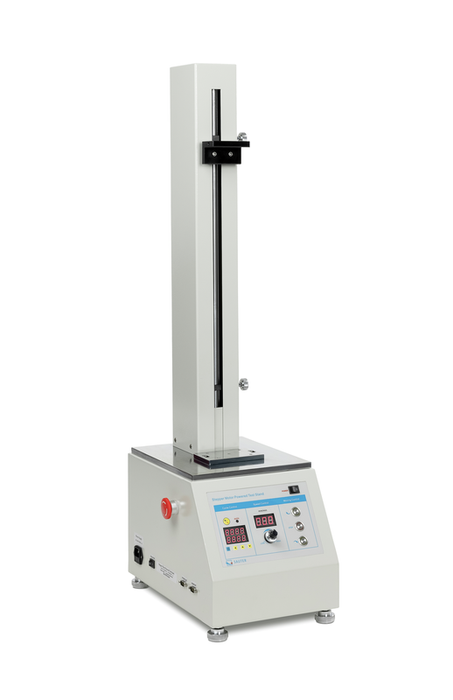

What is the TVO-S Motorised Tensile Test Stand?
Sauter's TVO-S motorised tensile force test stand can be combined with any of the Sauter digital force gauges to measure tension and compression forces up to 2000N. Designed for verticle tensile force tests, this single column machine offers a robust heavy duty metal construction to provide stability. Table top design for comfortable operation. Precise speed control up to 500mm per minute with automatic safety shutdown to prevent damage to measuring devices.

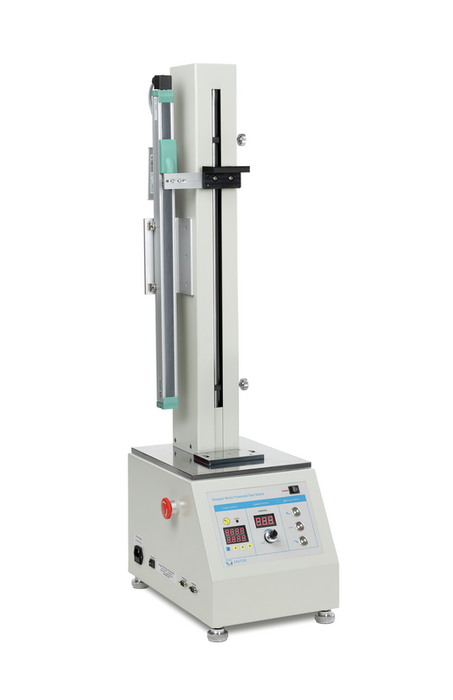

How is the TVO-LD Motorised Tensile test stand different?
The TVO-LD adds the length measuring system LD to the standard TVO-S test stand, allowing the stand to measure displacement as well as force, included with the stand is the AFH LD data software recording data and plotting graphs for live indication of results, software also allows the PC to control the test stand. The only extra you will need to add is the force gauge and force gauge mounting bracket.
Five in one – motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting.
With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 700 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed.
Application and other relevant information
Motorised test stand for tension/compression force testing
Stepper motor for greatest ease of use
- for constant speed from the smallest to the maximum load
- allows testing at minimum speed and full load
- for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds
- precise adjustment of the displacement speed using the information shown on the display
Automatic or manual operation mode
Premium operating panel:
- Digital speed display
- Digital repeat function display
- Control of the test stand using PC software SAUTER AFH
Table-top design for comfortable operation
Robust construction
Fixation of SAUTER force measuring devices up to 2 kN possible, only in combination with TVO-A01 (see accessories)
** Force Gauge is purchased separately and not included with TVO-S or TVO-LD **
*** Heavy Item shipped by Freight forwarder ***
Data Sheet
