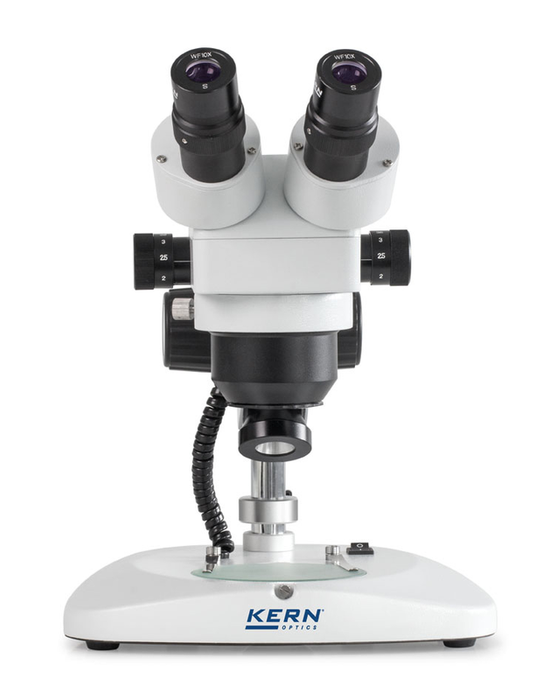

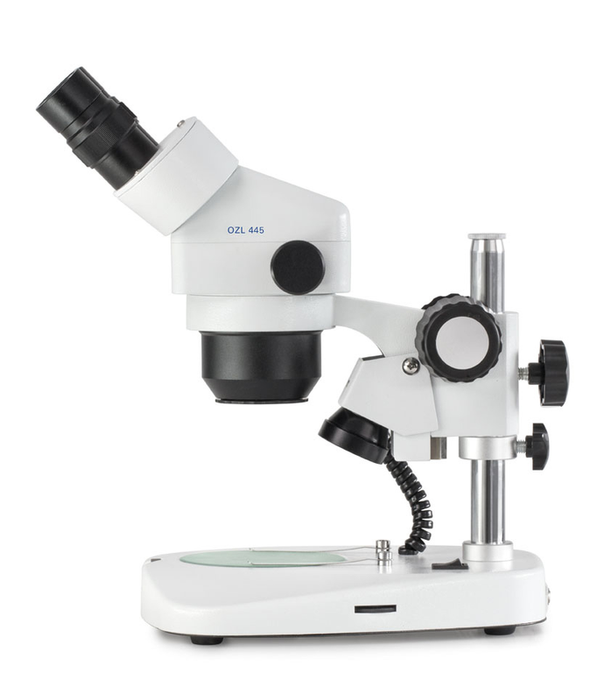

OZL 445 Stereo Zoom Microscope

Features

The products in the KERN OZL-44 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.  The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample.

As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.  The zoom objective gives you continuous magnification of 7,5× – 36×

The OZL-44 series is available as a binocular version. The eyepieces are fixed in the
eyepiece tube, to stop them getting damaged or lost.  The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand.

A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories.  A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Scope of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation,
section, quality control

Applications/Samples

Samples with focus on three-dimensional impression, zoom with variable magnification
(depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

Optical system: Greenough optics
Brightness adjustable (separate)
Tube 45° inclined
Magnification ratio: 4,8:1
Interpupillary distance 55 – 75 mm
Diopter adjustment: Both-sided
Overall dimensions W×D×H 330×235×380 mm
Net weight approx. 5 kg
