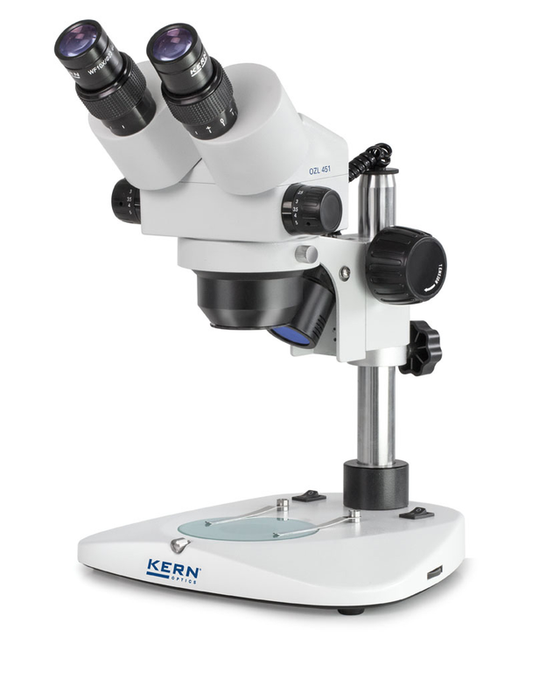

OZL 451 Stereo Zoom Microscope

Features

The KERN OZL-45 stereo zoom microscope series will impress you with its excellent
optical characteristics, easy operation and high level of ergonomic working comfort.
The Halogen incident and transmitted illumination included as standard guarantees
the very best illumination of your sample · The high-quality optics, together with a
large working surface offers the highest level of comfort for your applications.

The zoom objective offers you continuous magnification from 7,5×–50×.  The KERN OZL-45 series is available as a binocular version. The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand.

A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories. A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Scope of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation,
section, quality control

Applications/Samples

Samples with focus on three-dimensional impression, zoom with variable magnification
(depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

Optical system: Greenough optics
Brightness adjustable
Tube 45° inclined
Magnification ratio: 6,7:1
Interpupillary distance 55 – 75 mm
Diopter adjustment: Both-sided
Overall dimensions W×D×H 330×270×460 mm
Net weight approx. 5 kg
