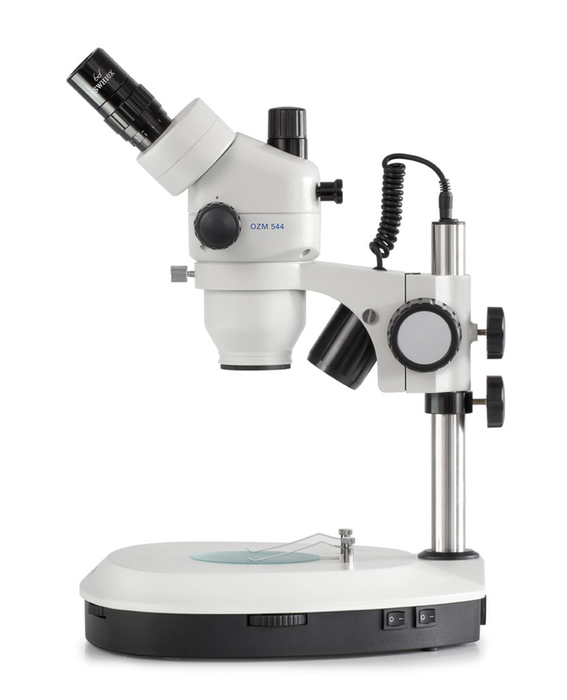

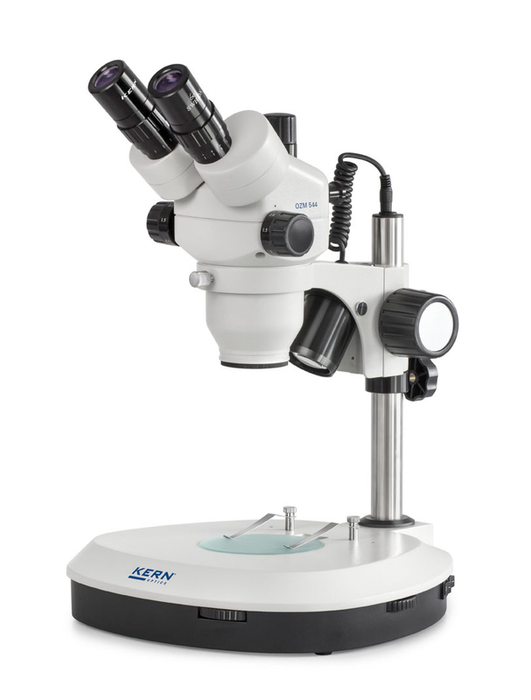

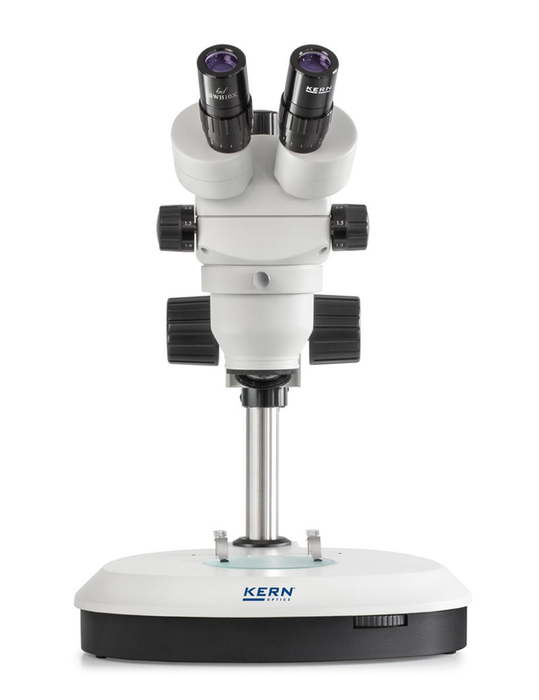

OZM-5 Stereo Zoom Microscope

Features

The KERN OZM series is a range of excellent stereo zoom microscopes with above-average optical features.  The ergonomic shape allows a simple, effortless working over a period of several hours.

The extraordinarily strong and continuously dimmable 3 W LED reflected and transmitted illumination ensures a flexible and particularly good level of illumination for your sample.  With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images.

The zoom objective gives you continuous magnification from 7,5×–45×.  There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports.  The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.

A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination
units as well as auxiliary objectives and more are available as accessories.  A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.  A C-mount adapter is required to connect a camera to the trinocular version.

Scope of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation,
section, quality control, electronics and semiconductor industry, assembly and repair

Applications/Samples

Samples with focus on three-dimensional impression, zoom with variable magnification
(depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

Optical system: Greenough optics
Brightness adjustable (separate)
Tube 45° inclined
Magnification ratio: 6,4:1
Light distribution OZM 543/544: 100:0
Interpapillary distance 52 – 76 mm
Dioptre adjustment: Both-sided
Overall dimensions W×D×H 330×285×440 mm
Net weight approx. 4,5 kg
