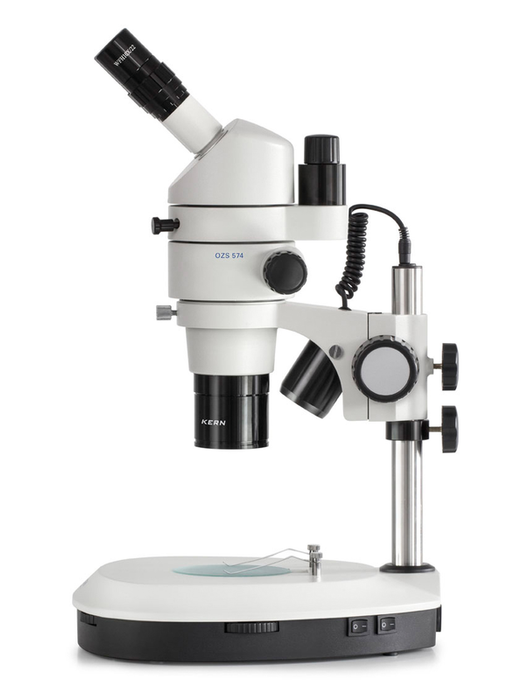

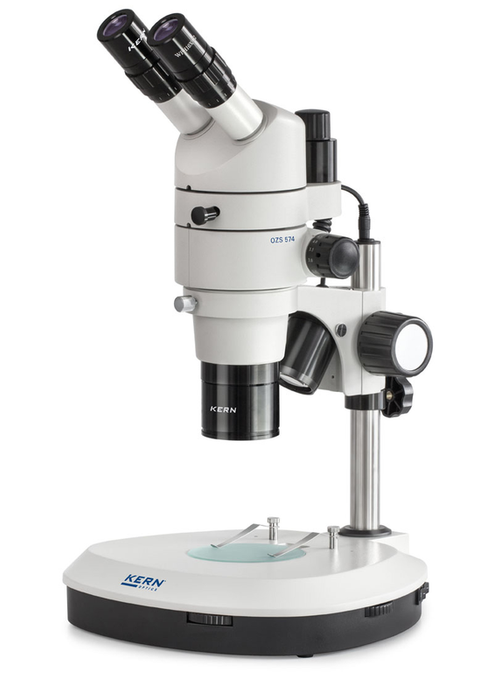

OZS 574 Stereo Zoom Microscope

Features

The KERN OZS series is a special, high-quality stereo zoom microscope with parallel optics for demanding analyses.  The KERN OZS series is available as a strong, continuously adjustable 3 W LED reflected and transmitted light variant for the very best illumination of your sample or as a variant without illumination.

The parallel optical system is a high-quality optical system and provides excellent images
with the best contrast, colour and depth of field with fatigue-free working. Refocusing
is also only necessary in very few cases when magnifying the zoom.  The continuously adjustable magnification range from 8 to 50 times magnification means that you can work quickly and effectively.

As standard, the models of the KERN OZS series are trinocular and are therefore equipped for connecting a camera for documentation purposes and for quality
reports.  The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.

A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination
units as well as auxiliary objectives and more are available as accessories.  A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.  A C-mount adapter is required to connect a camera to the trinocular version.

Scope of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation,
section, quality control, electronics and semiconductor industry, assembly and repair

Applications/Samples

Samples with focus on three-dimensional impression, zoom with variable magnification
(depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

Optical system: Parallel optics
Brightness adjustable (separate)
Tube 45° inclined
Magnification ratio: 10:1
Light distribution 100:0
Interpupillary distance 52 – 76 mm
Diopter adjustment: Both-sided
Overall dimensions W×D×H 305×300×540 mm
Net weight approx. 5,5 kg
