OZL-S Digital Microscope Set

Features

The flexible, cost-effective OZL-46 range is now also available to you as a comprehensive
digital solution for your live investigations. Optionally available with an mounted tablet
or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.

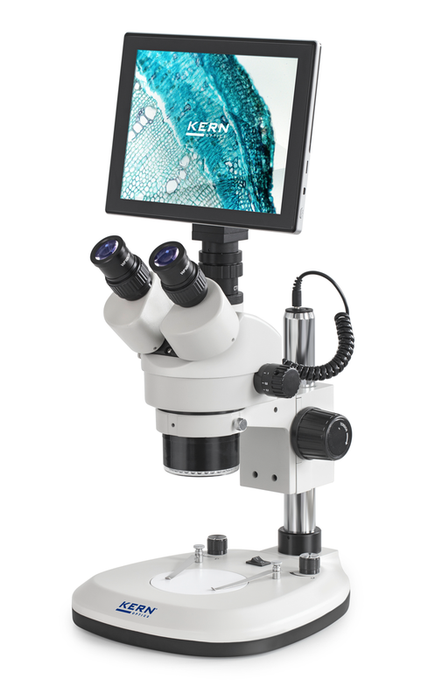

The mounted KERN ODC 241 tablet-camera has been specially developed for simple,
convenient and direct investigation of the sample on the screen. Ideally suited for
school pupils and students in education or for demonstration purposes in the laboratory.

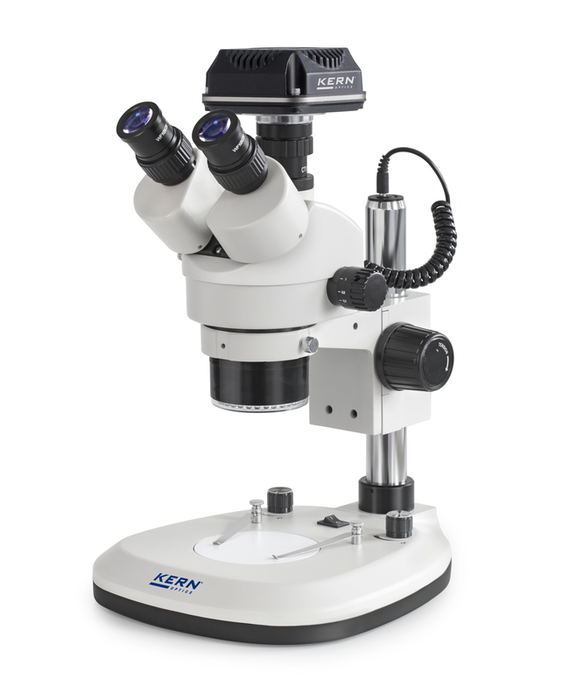

The mounted C-mount camera is available in different versions and can be used anywhere.  For detailed information on the individual components, see the relevant product description of the individual item.   A protective dust cover, eye cups, as well as
multi-lingual user instructions are included in the scope of the delivery.

Technical data

Optical system: Greenough optics
Brightness adjustable (separate)
Tube 45° inclined
Magnification ratio: 6,4:1
Light distribution 100:0
Interpupillary distance 55 – 75 mm
Diopter adjustment: Both-sided
Overall dimensions W×D×H 300×240×420 mm
Net weight approx. 5 kg
Eyepiece: HWF 10×/∅ 20 mm
Field of view: ∅ 28,6 – 4,4 mm
Objective: 0,7× – 4,5×
Stand OZL 464/466: Pillar style
Stand OZL 468: Arm curved
Illumination: 3 W LED (incident + transmitted)
