FH-M Digital Force Gauge (External)

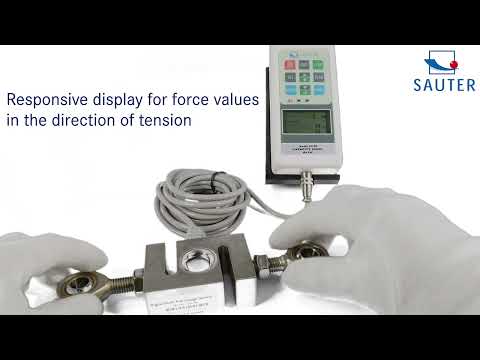

Premium-quality force gauge manufactured by Sauter, FH-M force gauges include a wide variety of features including peak hold, real time and statistical analysis. These devices are compatible with our full range of manual test stands supplied by our sister-site, The Measurement Shop UK, and can be supplied with PC based software for data collection and record keeping.

FH-M force gauges include a sample rate of 2000Hz with an accuracy of 0.5% of capacity, an auto power off function that can be set between 1 and 60 seconds, a large LCD display and reversible display for easy reading in force or push applications.

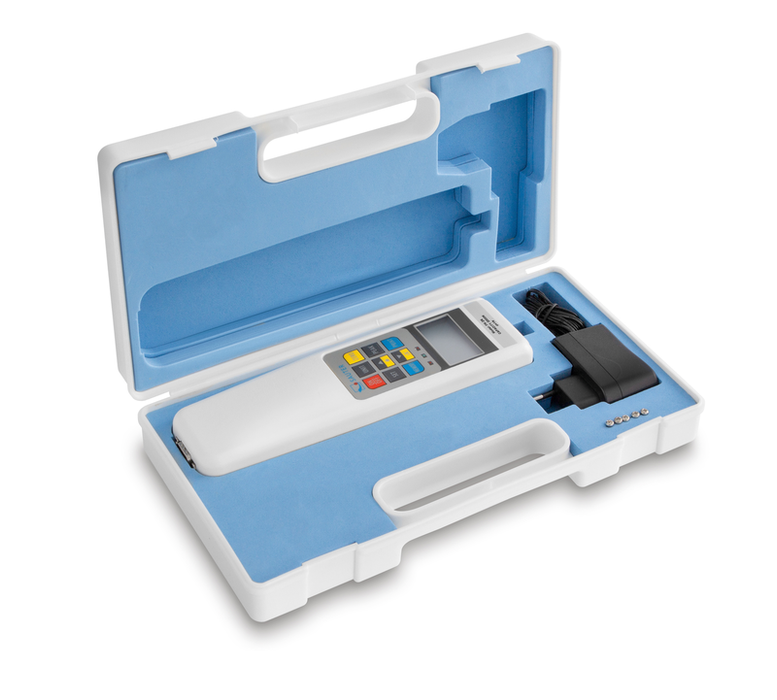

All FH force gauges we sell are supplied with standard RS-232 output for connection to PC or printer. Programmable high and low set points for go/no go testing. Optional extras include PC Windows based software, thermo-printer and digital control signal interface for machine control. This gauge is supplied with rechargeable batteries and UK charger, complete in a hard carrying case.

Load Cell Dimensions

FH 1K - FH 2K

Dimensions (WxDxH) 76.2 x 51 x 19mm

Thread: M12

FH 5K - FH 20K

Dimensions (WxDxH) 76.2 x 51 x 28.2mm

Thread: M12

FH 50K

Dimensions (WxDxH) 108 x 76.3 x 25.5mm

Thread: M18

FH 100K

Dimensions (WxDxH) 178 x 152.2 x 51.3mm

Thread: M30
