FH-S Digital Force Gauge

Top-quality universal digital force gauge manufactured by Sauter, the FH-S offers a whole host of features from peak hold to statistical analysis, compatible with our full range of test stands and can be supplied with PC based software for data collection and record keeping.

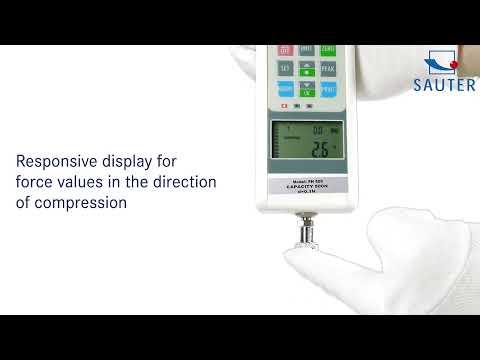

FH-S force gauges utilise real time or peak hold modes to observe transient or capture peak loads. They include a sample rate of 2000Hz with an accuracy of 0.2% of capacity, programmable Auto power off function that can be set between 1 and 60 seconds, a statistics function that calculates the average results from up to ten stored single results (min, max & N), as well as a large LCD display with blue back-light and reversible display for easy reading in push applications.

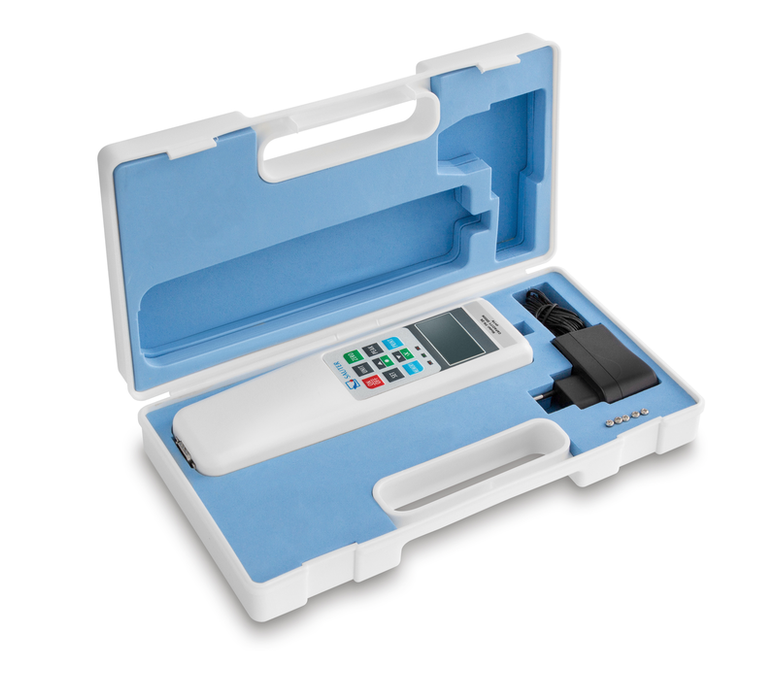

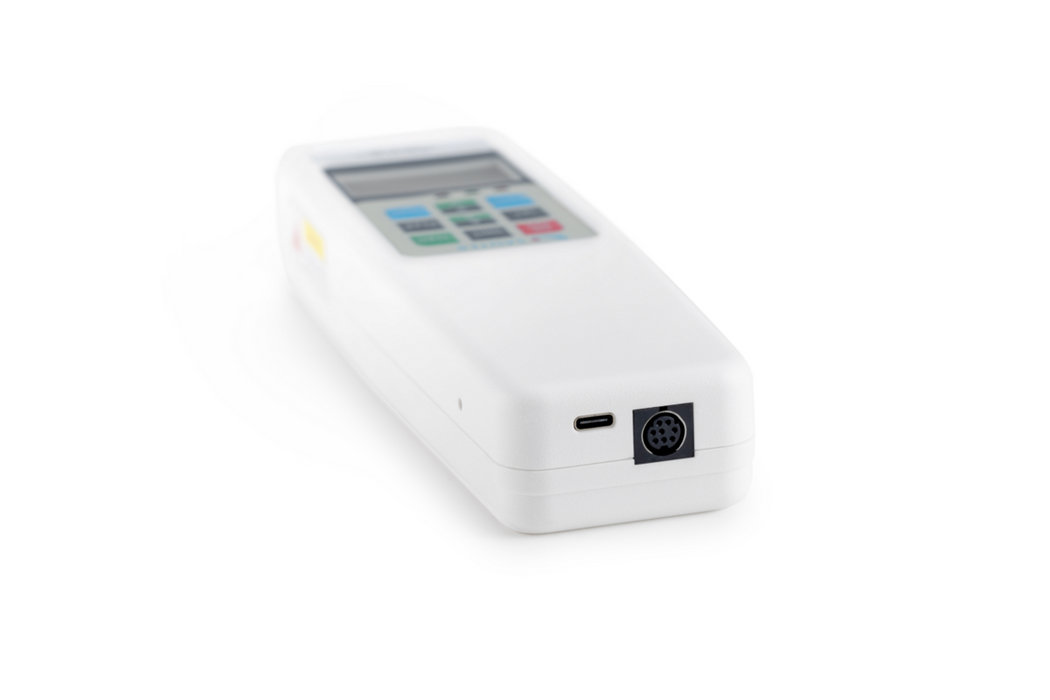

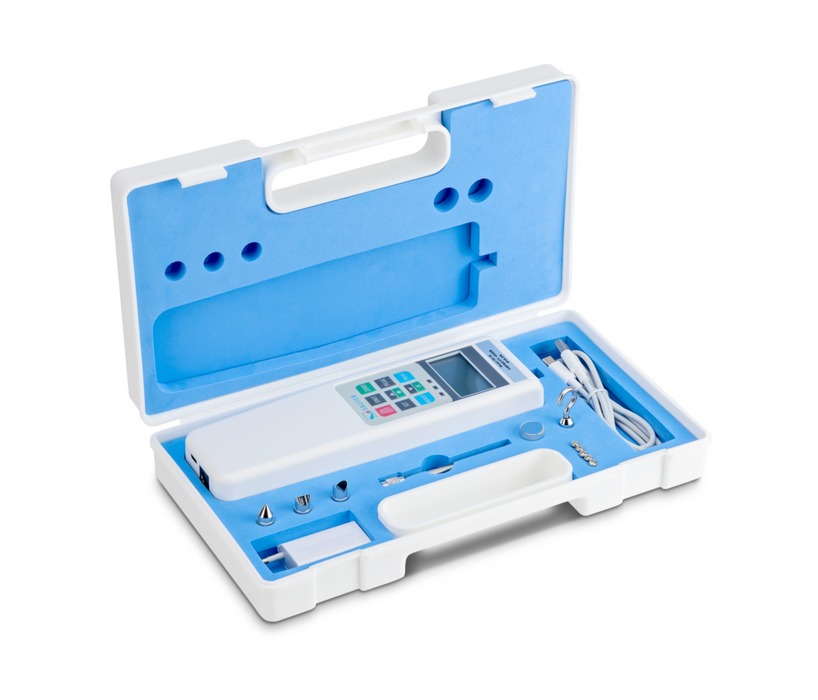

FH is supplied with standard RS-232 and USB-C output for connection to PC or printer. Programmable high and low set points for go/no go testing. Optional extras include PC Windows based software, Thermo-printer and digital control signal interface for machine control. This force gauge is supplied with rechargeable batteries and UK charger, complete in a hard carrying case.
