ORM-UN Digital Refractometer

Features

The KERN ORM refractometers are accurate and universal maintenance free digital
handheld refractometers.  They are characterized by their easy-using and robustness.

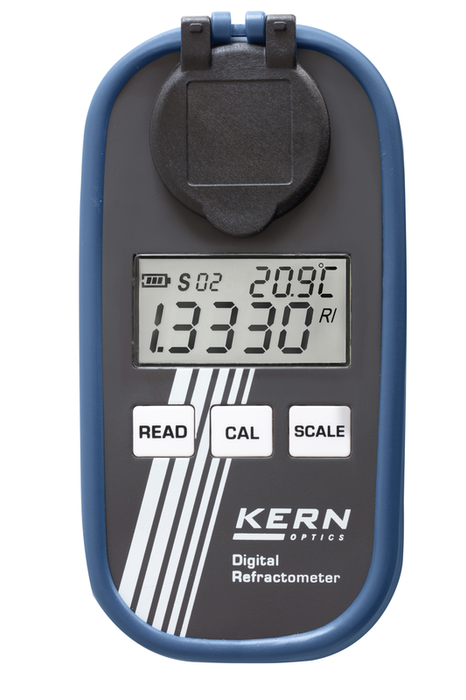

The typical and practical design is suitable for a quick and convenient everyday use.  The large, easy-to-read display with integrated temperature display supports the user to
reliably determine the measurement.

The integrated automatic temperature compensation (ATC), avoids the manual conversion of the measurement. This allows a quick and efficient usage of the instrument.  Rapid, user-friendly calibration of the refractometer is possible at any time using standard commercial distilled water.

The refractometers from the KERN ORM range are protected to international IP65
protection class, against dust and water splashes. After use, you can rinse the
refractometer under running water.  Mean value measurements possible

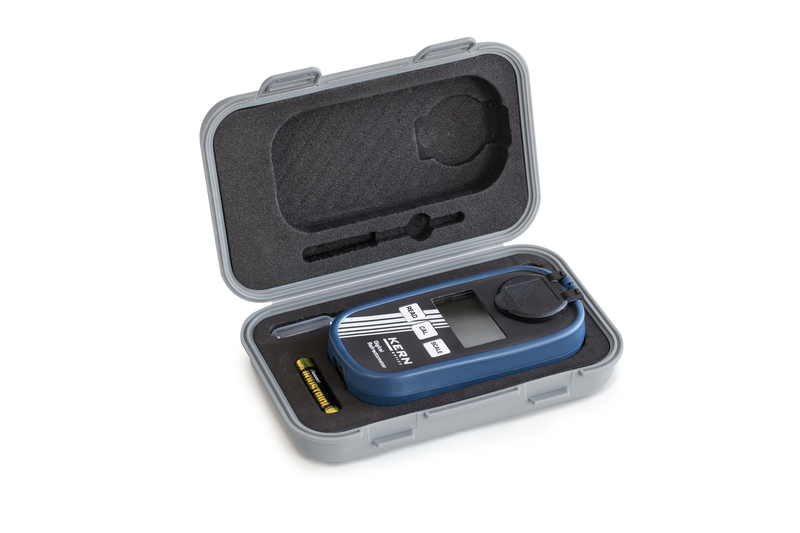

The following accessory-parts are included:

Prism cover lid
Pipette
Storage box
1 × AAA battery
Screwdriver

Digital measurement of refraction index for universal application

Technical data

Measurement temperature: 0 °C – 40 °C
Overall dimensions W×D×H 121×58×25 mm
Net weight approx. 289 g
Power supply: 1 × AAA (1,5 V)
Lifetime of the battery: approx. 10.000 measurements
ATC (Automatic Temperature Compensation)
Minimum sample volume: 4 drops
Automatic energy management (AUTO-OFF after 60 seconds)
Mean value measurement (15 measurements)

Scope of application: Urine

The following models are particularly suitable for the measurement of the specific gravity (sg) in urine, the quantity of serum (serumproteine) in urine (doping control among athletes), and the refractive index.

The main scope of applications is:

Hospitals
Doctor’s surgeries/Physicians
Medical training institutions
Nursing homes
Sports medicine (doping test)
Veterinary
