OZL-46 Stereo Zoom Microscope

Original price £600.00 - Original price £690.00
Original price
£600.00 - £690.00
Current price £600.00

Key Features:
  • The flexible, affordable all-rounder with zoom function
  • Ideal for training companies, workshops as well as assembly and repair workstations
  • The pillar stand offers you the highest level of flexibility
PDF Document
Data Sheet
PDF Document

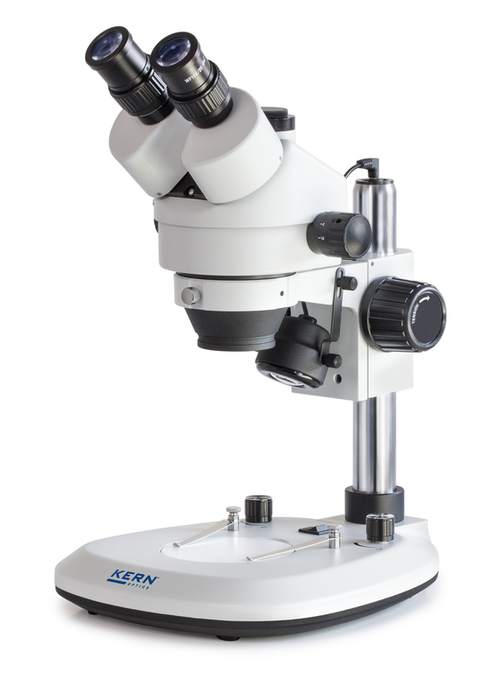

The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and
economical price.  The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample.

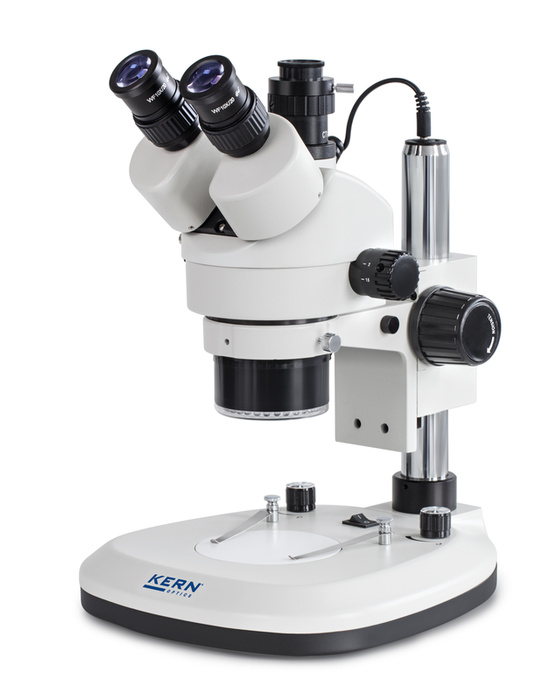

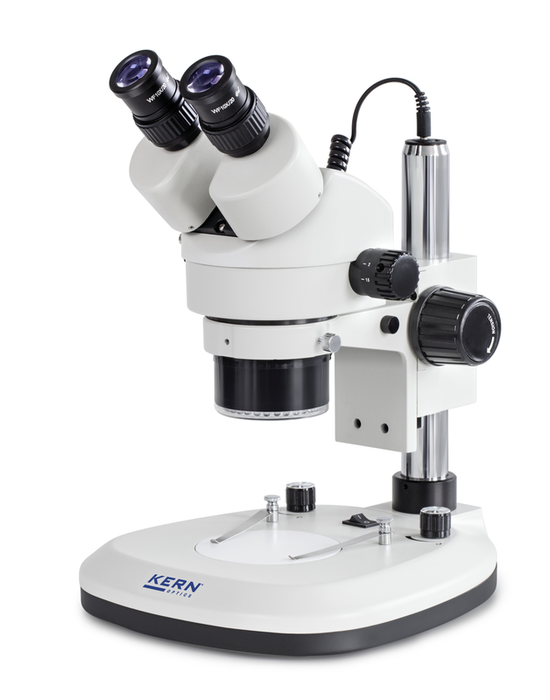

The highlight of the OZL 465/OZL 466 is the strong, continuously dimmable, integrated
LED ring illumination in the objective housing, which ensures uniform, shadow-free
illumination. An LED transmitted light variant is also included
As well as excellent optical characteristics and their large working surface, these models
offer the highest level of comfort in this class – ideal for training companies, workshops
as well as assembly and repair workstations, e.g. in the electronics industry

The zoom objective offers you continuous magnification from 7×–45×.  The KERN OZL-46 series is available as a binocular or trinocular version.  The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand.

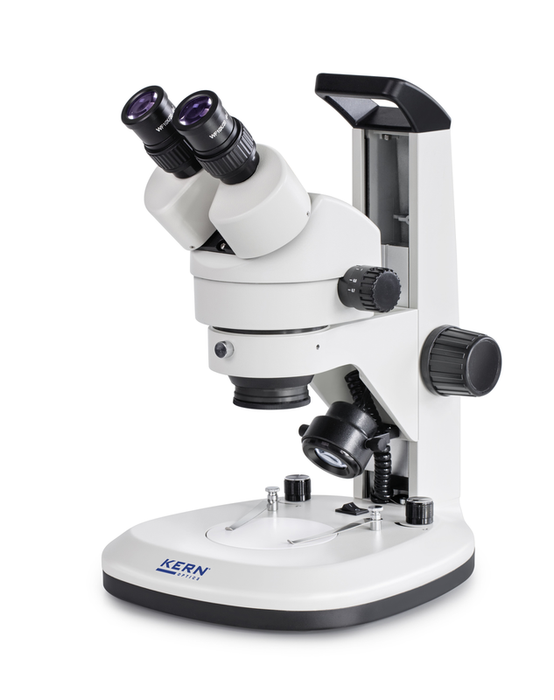

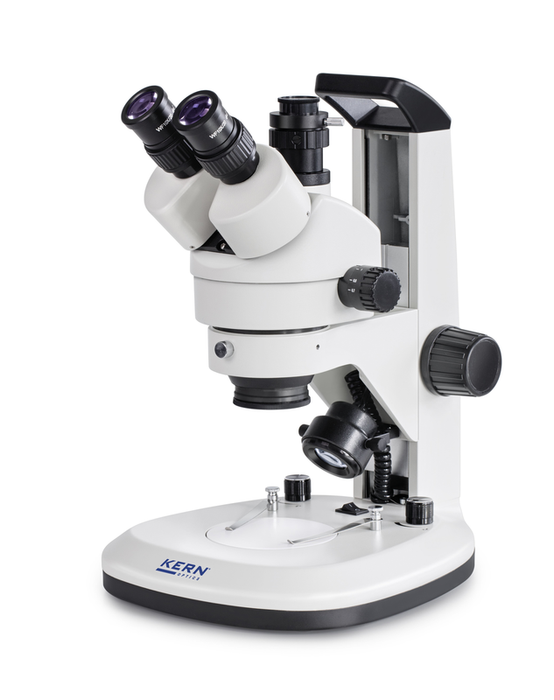

With its integrated handle as well as its stable arm curved stand, the KERN OZL 467/
OZL 468 has been specially developed for schools and workshops.  A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
A protective dust cover, eye cups, as well as multi-lingual user instructions are included
in the scope of delivery. A C-mount adapter is required to connect
a camera to the trinocular version. You can select this adapter from the accessories page

Scope of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation,
section, quality control


Samples with focus on three-dimensional impression, zoom with variable magnification
(depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

Optical system: Greenough optics
Brightness adjustable (separate)
Tube 45° inclined
Magnification ratio: 6,4:1
Light distribution OZL 464/466/468: 100:0
Interpupillary distance 55 – 75 mm
Diopter adjustment: Both-sided
Overall dimensions W×D×H 300×240×420 mm
Net weight approx. 4 kg
