OZM-S & OZP-S Digital Microscope Set
- First-class optics as well as strong illumination combined with a high level of flexibility and digital tools
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
- The mounted C-mount camera is available in different versions and can be used anywhere
Data Sheet
Manual
Description:
Features
Stereo microscopes from the OZM and OZP range are now also available to you as a
comprehensive digital solution for your live investigations. Optionally available with
an mounted tablet or C-mount camera. Naturally, the appropriate C-mount adapter
is included with the delivery

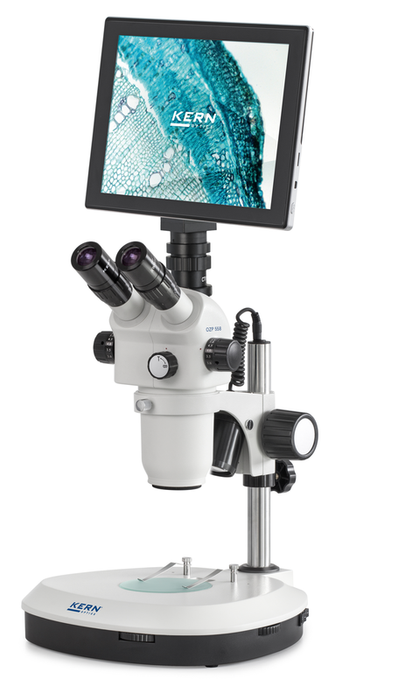

The mounted KERN ODC 241 tablet-camera has been specially developed for simple,
convenient and direct investigation of the sample on the screen. Ideally suited for
school pupils and students in education or for demonstration purposes in the laboratory.

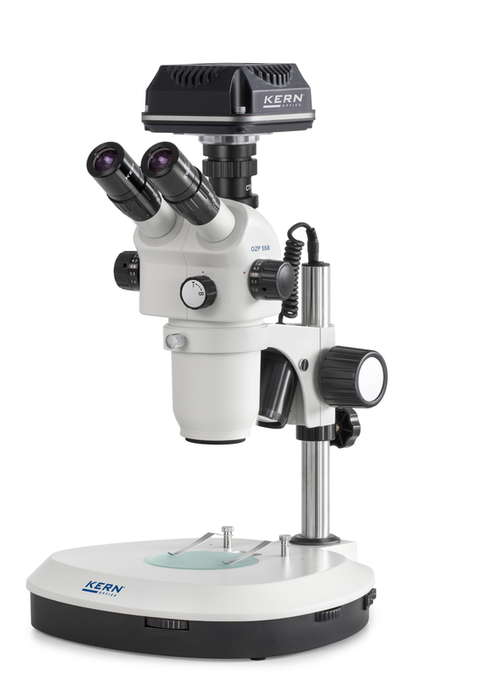

The mounted C-mount camera is available in different versions and can be used
anywhere. For detailed information on the individual components, see the relevant product description of the individual item
A protective dust cover, eye cups, as well as multi-lingual user instructions are included
in the scope of the delivery.
Technical data
Optical system: Greenough optics
Brightness adjustable (separate)
Light distribution: 100:0
Diopter adjustment: Both-sided
Net weight approx. 5,5 kg
Eyepiece: HSWF 10×/∅ 23 mm
Stand: Pillar style
Illumination: 3 W LED (incident + transmitted)
OZM-5
Tube 45° inclined
Magnification ratio: 6,4:1
Interpupillary distance 52 – 76 mm
Overall dimensions W×D×H 330×285×440 mm
Field of view: ∅ 32,8 – 5,1 mm
Objective: 0,7× – 4,5×
OZP-5
Tube: 35° inclined
Magnification ratio: 9,2:1
Interpupillary distance 52 – 76 mm
Overall dimensions W×D×H 330×285×470 mm
Field of view: ∅ 38,3 – 4,2 mm
Objective: 0,6× – 5,5×
