TN-GOLD 80 Sauter Ultrasonic Gold Tester

by Sauter
Original price £770.00 - Original price £770.00
Original price £770.00 - Original price £770.00
Original price
Current price £770.00
£770.00 - £770.00
Current price £770.00

Key Features:
  • Determine whether gold or silver bars and coins are genuine
  • Measures the thickness of gold bars and gold coins using ultrasound
  • Selectable measuring units: mm, inch

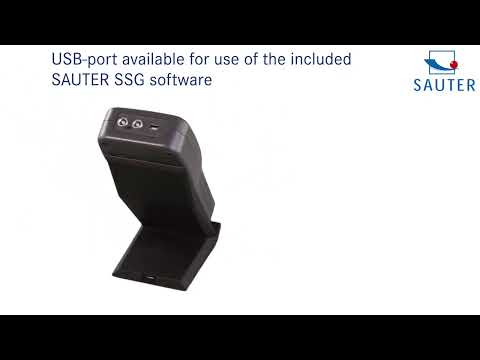

  • Software determines the value of the gold item
PDF Document
Data Sheet
PDF Document
Manual
 More payment options

Description

You can use the TN-GOLD 80 ultrasonic gold tester to determine whether gold bars and coins are genuine or whether they contain a core of a different material. This instrument measures the thickness of gold bars and gold coins using ultrasound.

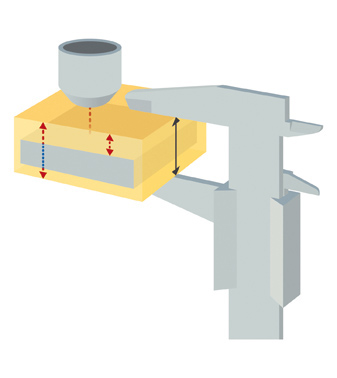

Ultrasound waves are directed onto the test object using a sensor. The waves penetrate the test object, are then reflected from a surface opposite the object and then picked up again by the sensor. The measurement determined by this process will be compared with the material thickness as measured by a traditional calliper gauge. On the basis of the measurement given, false cores (Figure: grey) such as for example, those made of tungsten, lead, etc. can be easily identified, as the ultrasound reacts differently, compared with pure gold.

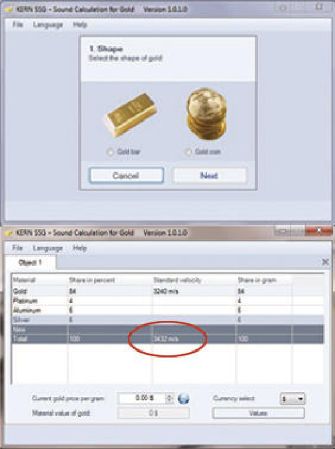

Using the SAUTER SSG software (included), you can determine whether the test item is genuine or contains a false core – and you can be very confident of the result. Known additions in tested gold items – e. g. copper or silver - are compensated by the software. In addition, the software determines the value of the gold item. The price of gold is polled on line continuously. It is the only test process which measures right through the whole bar or the whole coin without interference and thereby guarantees the highest level of certainty.

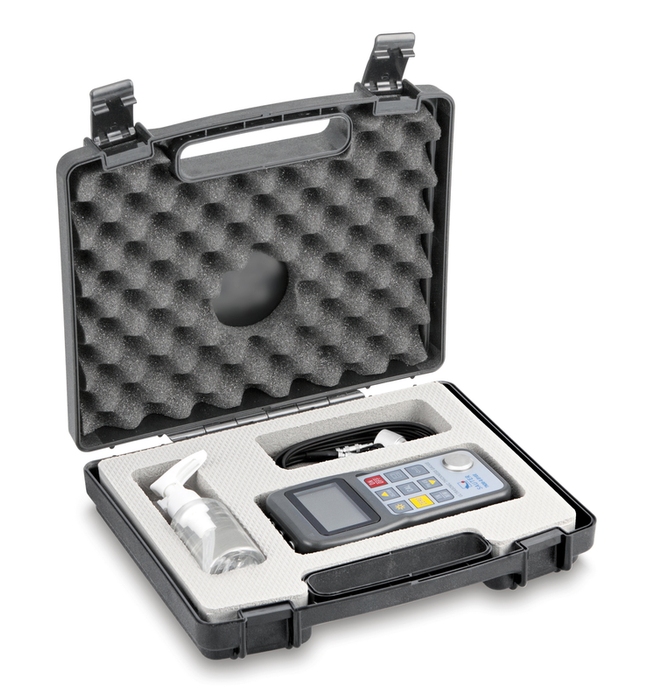

TN models are delivered in a hard carrying case with base plate for calibration included.
